ACS® MB SC

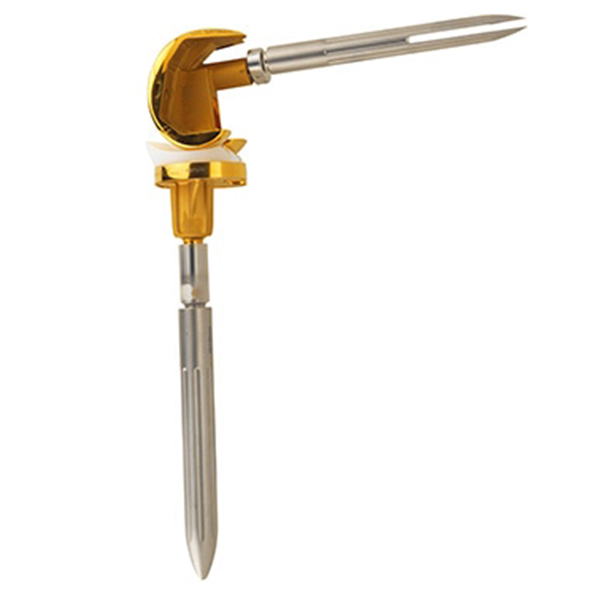

The ACS® FB SC System (SC-semi-constrained) offers the possibility to connect stem extensions with the femoral and tibial component via double tapers (offset adapters) and to compensate for bone defects with spacers (augments). The PE-peg is guided in the femoral box and stabilized by the femoral spindle during articulation between femoral and tibial component.

Category:
Read More

Description

Indication

Revision of primary knee joint replacement with loss/damage of both cruciate ligaments and instability of the collateral ligaments with the presence of femoral and/or tibial bone defects.

Materials
  • implavit®; CoCrMo according to ISO 5832-4 (femoral and tibial components)
  • UHMW-PE according to ISO 5834-2 (PE-inserts)
  • implatan®; TiAl6V4 – alloy according to ISO 5832-3 (stems, double taper and spacer)
Coating
  • TiN-coating
  • porous coating on surfaces of cementless femoral and tibial components
  • implaFix® HA; HA-coating according to ISO 13779-2 (for cementless stems with HA-coating)
Product Range
  • 6 femoral sizes
  • 5 sizes PE-inserts in thicknesses from 10mm to 20mm
  • 5 tibial sizes (cemented and cementless version)
  • double taper (femoral: 0mm, 2mm, 4mm, 6mm; tibial: 2mm and 4mm)
  • 16 stems versions: uncoated or HA-coated
    (lengths: 100mm, 150mm and 200mm; diameter: 12mm, 14mm, 16mm, 18mm, 20mm, 22mm)
  • spacer femoral (posterior and distal, each in 5mm and 10mm), tibial (5mm and 10mm)
    applicable with cemented components only
  • cemented and cementless version
